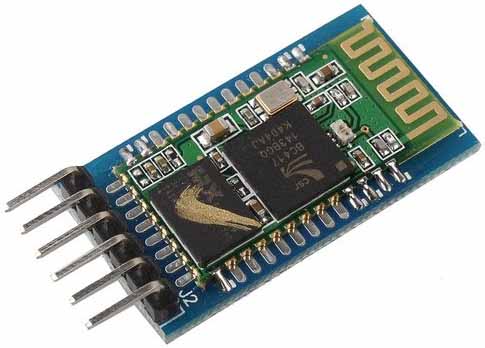

HC-05 Bluetooth Module UART Serial Transceiver for Arduino, Robotics & DIY Projects
Status:
Available
Price : ₹187 220 15% off
Cash on delivery available
Return not available
Free Shipping above ₹499
The HC-05 Bluetooth Module is a popular and reliable wireless communication module used for connecting microcontrollers and electronic projects to smartphones, computers, and other Bluetooth-enabled devices. It enables serial communication (UART) over Bluetooth, making it ideal for Arduino, robotics, IoT, and DIY electronics projects.
This module operates in the 2.4GHz frequency band and can work in both Master and Slave modes, allowing it to either connect to other Bluetooth devices or accept connections from them. The HC-05 communicates with microcontrollers using simple TX and RX serial pins, making it very easy to integrate with development boards like Arduino Uno, Arduino Nano, and ESP32.
The module is widely used in applications such as wireless data transmission, remote control robots, home automation systems, smart devices, and mobile-controlled projects. It supports a communication range of up to 10 meters and provides stable and low-power wireless connectivity.
With simple AT commands, users can configure the module settings such as device name, baud rate, password, and operating mode, making it flexible for different applications.
The HC-05 Bluetooth Module is an excellent choice for students, hobbyists, and engineers who want to add wireless Bluetooth control to their electronics projects easily and affordably.
1.Model: HC-05 Bluetooth Module
2.Bluetooth Version: Bluetooth V2.0 + EDR
3.Frequency Band: 2.4 GHz ISM Band
4.Operating Voltage: 3.6V – 6V
5.Logic Level Voltage: 3.3V
6.Communication Interface: UART (TX, RX) Serial Communication
7.Operating Mode: Master Mode / Slave Mode
8.Default Baud Rate: 9600 bps
9.Communication Range: Up to 10 meters
10.Default Pairing Password: 1234 or 0000
11.Data Transfer Rate: Up to 3 Mbps
12.Operating Current: ~30mA
13.Operating Temperature: -20°C to +75°C
14.Compatibility: Works with Arduino Uno, Arduino Nano, ESP32, Raspberry Pi, and other microcontrollers.
