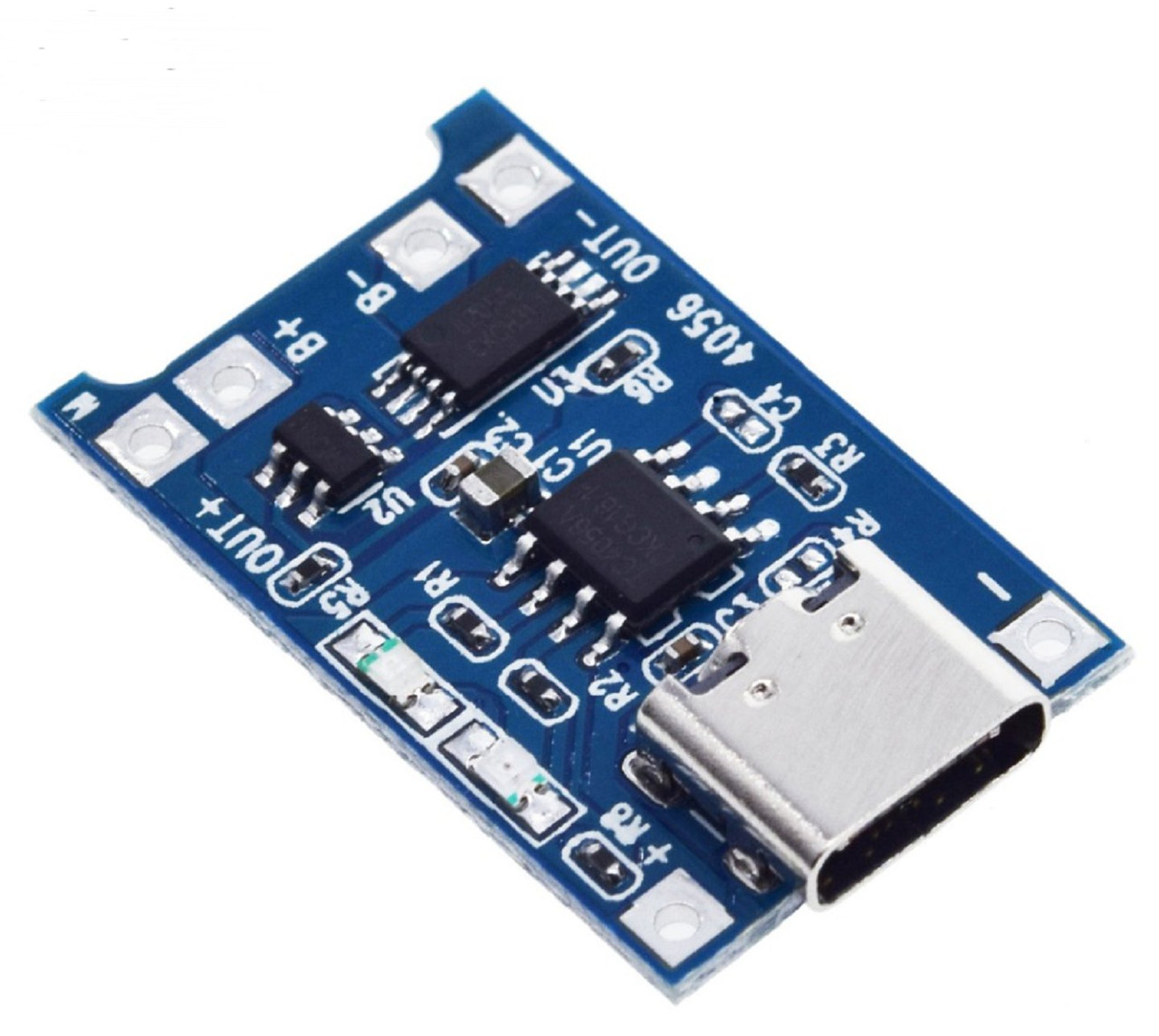

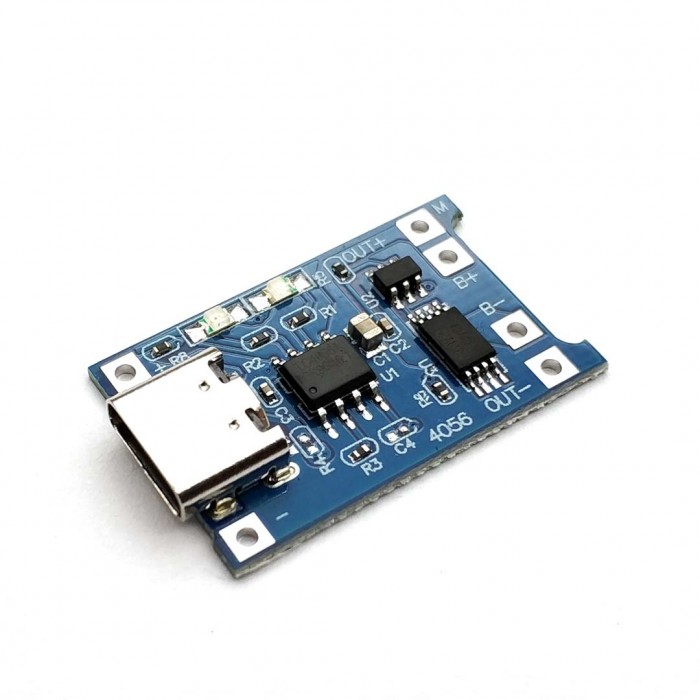

TP4056 Type-C USB 1A Lithium Battery Charging Module with Protection (for 3.7V 18650 Li-ion Battery)
Status:
Available
Price : ₹30 35 15% off
Cash on delivery available
Return not available
Free Shipping above ₹499
The TP4056 Type-C Lithium Battery Charging Module is a compact and reliable solution for charging single-cell 3.7V lithium-ion batteries such as 18650 batteries. It uses the TP4056 charging IC to provide safe and efficient charging with over-charge, over-discharge, and short-circuit protection. The Type-C USB input makes it easy to power the module from modern chargers, power banks, or USB ports. This module is ideal for DIY electronics projects, power banks, robotics, and portable battery-powered devices.
1.Charging Chip: TP4056
2.Input Voltage: 5V (via Type-C USB)
3.Charging Current: Up to 1A (adjustable via resistor)
4.Battery Type: Single Cell 3.7V Lithium-ion / Li-Po
5.Protection Features: Over-charge, Over-discharge, Over-current, Short Circuit
6.Charging Indicator: Red LED (Charging), Blue LED (Fully Charged)
7.Interface: Type-C USB
8.Module Size: Approx. 26mm × 17mm
10.Applications: Power banks, DIY electronics, portable devices, Arduino projects
