DHT11 Temperature and Humidity Sensor Module for Arduino, ESP32, Raspberry Pi & IoT Projects
Status:
Available
Price : ₹49 49
Cash on delivery available
Return not available
Free Shipping above ₹499

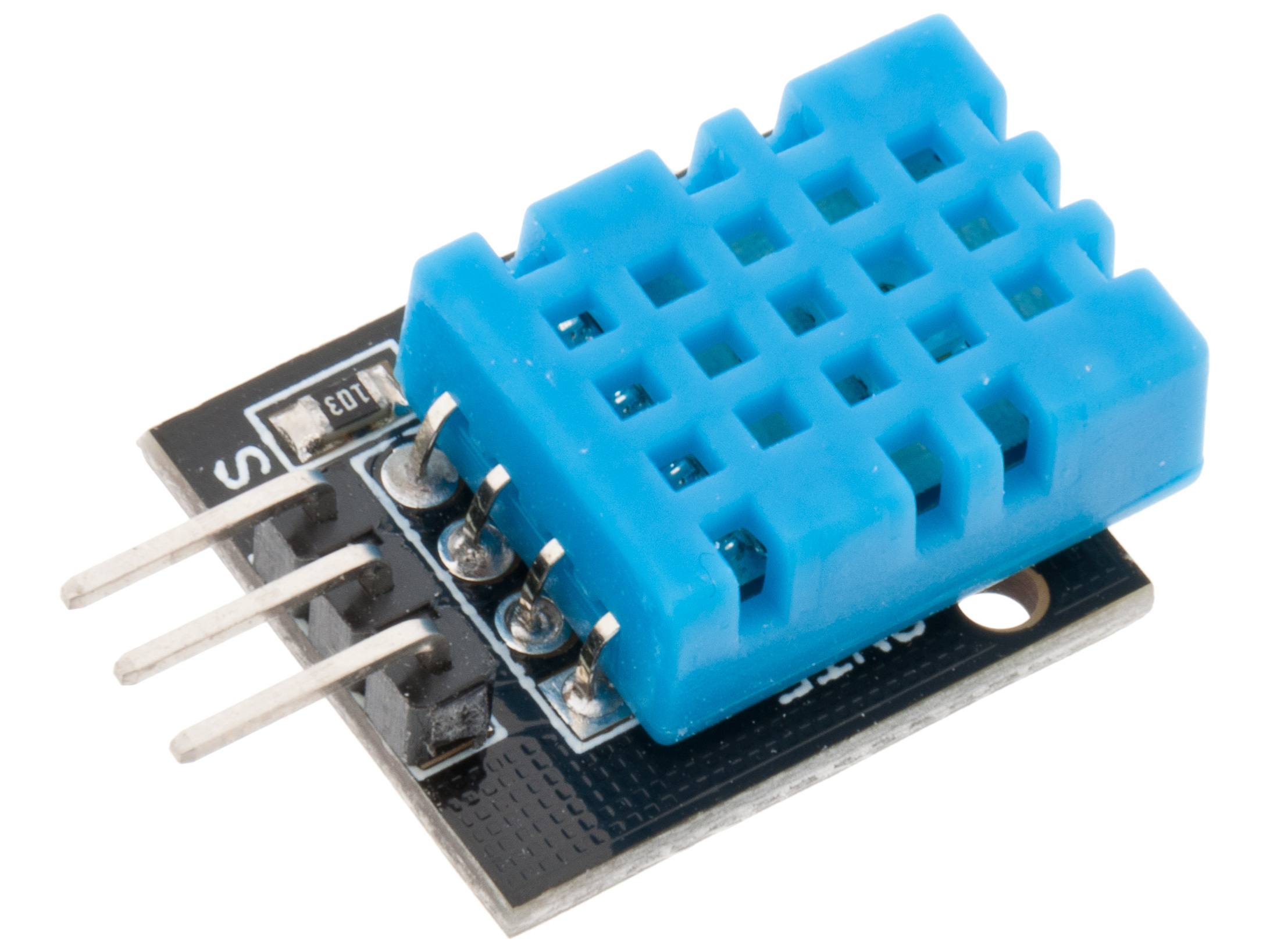

The DHT11 Temperature and Humidity Sensor Module is a reliable and low-cost digital sensor used for measuring ambient temperature and relative humidity. It is widely used in Arduino, ESP32, Raspberry Pi, and other microcontroller-based projects.
The sensor provides calibrated digital output, making it very easy to interface with microcontrollers without the need for complex analog-to-digital conversion. It uses a single-wire communication protocol, which allows quick and simple data transmission.
The DHT11 module is ideal for weather stations, home automation systems, environmental monitoring, and IoT projects. With stable performance and easy integration, it is a great choice for beginners and electronics enthusiasts working on DIY electronics projects.
Its compact design and low power consumption make it suitable for both educational projects and real-world applications where monitoring temperature and humidity is required. 🌡️💧
1.Sensor Type: Digital Temperature and Humidity Sensor
2.Operating Voltage: 3.3V – 5V DC
3.Temperature Measuring Range: 0°C to 50°C
4.Humidity Measuring Range: 20% to 90% RH
5.Temperature Accuracy: ±2°C
6.Humidity Accuracy: ±5% RH
7.Output Signal: Digital Signal via Single Bus
8.Sampling Rate: 1 Reading per Second
9.Communication Protocol: Single-Wire Serial Interface
10.Interface Pins: VCC, GND, Data
11.Operating Current: Approx. 0.3 mA (Measuring)
12.Standby Current: 60 µA
13.Module Size: Approx. 15 mm × 12 mm
14.Applications: Weather Stations, IoT Projects, Home Automation, Environmental Monitoring
