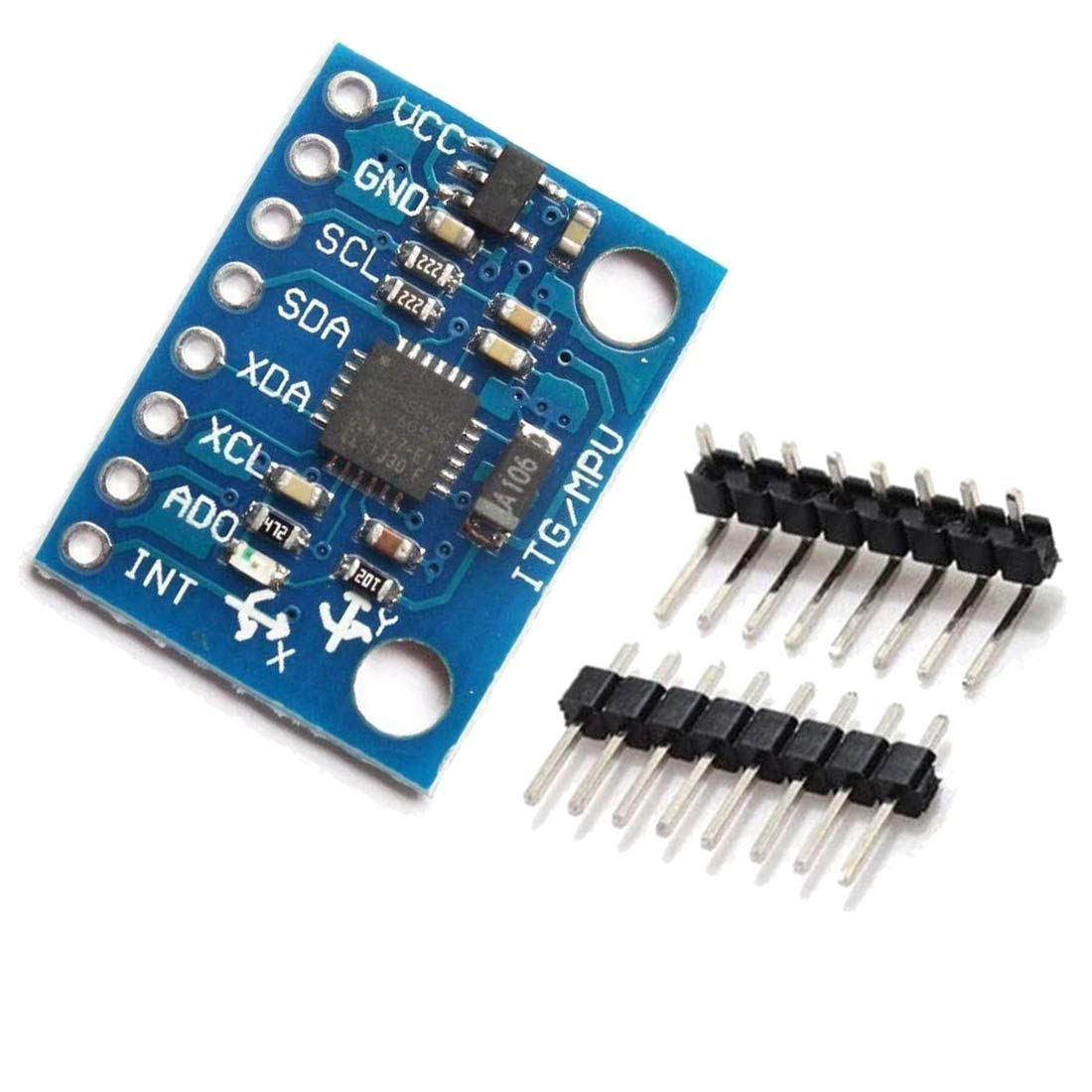

MPU6050 6-Axis Gyroscope and Accelerometer Sensor Module for Arduino, ESP32, and Robotics Projects
Status:
Available
Price : ₹180 180
Cash on delivery available
Return not available
Free Shipping above ₹499
The MPU6050 6-Axis Motion Tracking Sensor Module is a highly popular sensor used in electronics, robotics, and DIY projects. It combines a 3-axis gyroscope and a 3-axis accelerometer in a single compact module, allowing accurate measurement of motion, tilt, rotation, and vibration.
This sensor communicates using the I2C interface, making it easy to connect with popular microcontrollers like Arduino, ESP8266, ESP32, and Raspberry Pi. The built-in Digital Motion Processor (DMP) helps process complex motion data, reducing the workload on the main microcontroller.
The MPU6050 module is widely used in robotics, drones, self-balancing robots, gesture control systems, motion tracking devices, gaming controllers, and IoT projects. Its small size, low power consumption, and high accuracy make it an excellent choice for both beginners and advanced developers.
Whether you are building a robot, drone, or motion sensing project, the MPU6050 sensor provides reliable and precise motion tracking for your electronics projects. 🔧📡
1.Sensor Type: 3-Axis Gyroscope + 3-Axis Accelerometer (6-Axis Motion Tracking)
2.Operating Voltage: 3V – 5V DC
3.Communication Protocol: I2C Interface
4.Gyroscope Range: ±250, ±500, ±1000, ±2000 °/s
5.Accelerometer Range: ±2g, ±4g, ±8g, ±16g
6.Built-in Processor: Digital Motion Processor (DMP)
7.ADC Resolution: 16-bit
8.Operating Current: ~3.9 mA
9.Module Size: Approx. 20mm × 16mm
10.Compatible With: Arduino, ESP8266, ESP32, Raspberry Pi, and other microcontrollers
11.Applications: Drones, Robotics, Self-Balancing Robots, Motion Detection, Gesture Control, Gaming Devices, and IoT Projects. 🔧📡
