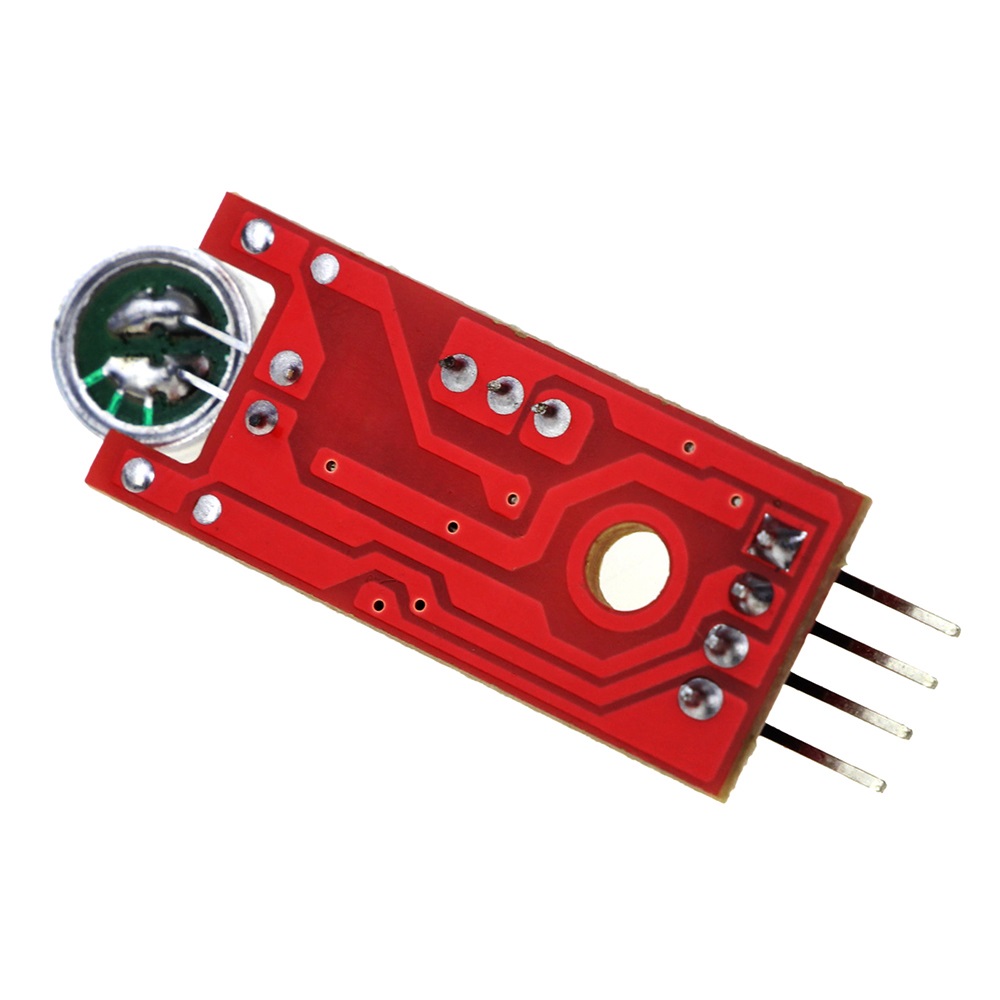

KY-037 High Sensitivity Microphone Sound Sensor Module for Arduino, ESP32 & DIY Projects 🔊

Status: Available

Price :  ₹45 45

Cash on delivery available
Return not available
Free Shipping above ₹499
The KY-037 Microphone Sound Sensor Module is a high-sensitivity sound detection module designed for use with microcontrollers like Arduino, ESP32, ESP8266, and other development boards. It uses an onboard microphone to detect sound levels in the surrounding environment and converts them into electrical signals that can be read by a microcontroller. The module features both analog and digital outputs, making it suitable for a wide range of projects. The built-in potentiometer allows you to adjust the sound detection sensitivity, enabling accurate response to different sound levels. An onboard LED indicator shows when the sound level exceeds the set threshold. This sensor is ideal for sound-activated projects, voice detection systems, noise monitoring, and DIY electronics projects. Due to its compact size and easy interface, it can be quickly integrated into robotics, smart home systems, and interactive electronics applications.
1.Model: KY-037 Microphone Sound Sensor Module 2.Operating Voltage: 3.3V – 5V DC 3.Output Type: Analog Output (A0) and Digital Output (D0) 4.Microphone Type: High Sensitivity Electret Microphone 5.Comparator Chip: LM393 Voltage Comparator 6.Sensitivity Adjustment: Onboard Potentiometer 7.Indicator LED: Power LED and Sound Detection LED 8.Interface: 4 Pins (VCC, GND, A0, D0) 9.Compatible Boards: Arduino, ESP32, ESP8266, Raspberry Pi, and other microcontrollers 10.Application: Sound detection, voice activation, noise monitoring, smart home projects, robotics, and DIY electronics.
